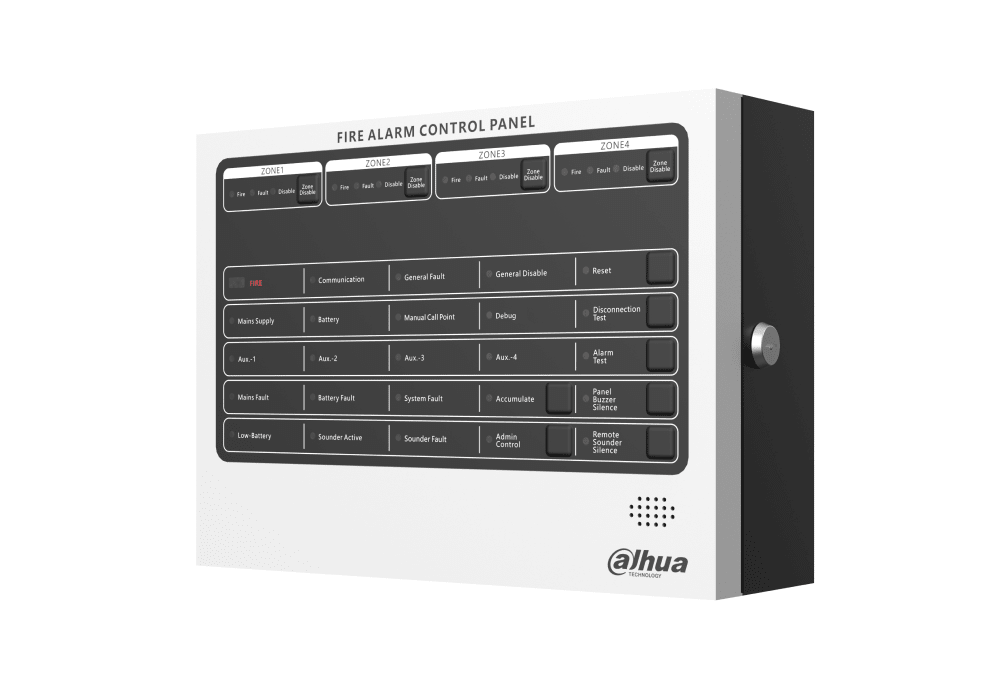

DHI-HY-C102-4. Panel Dahua de control de alarma contra incendios convencional

Conventional Fire Alarm Control Panel (Solo Panel)

> 90VAC to 270VAC main power supply ensures the stable operation
> 4 dry contacts make connection flexible
> Ethernet interfaces enables communication with IoT platform
> RS-485 interface contributes to convenient integration
> Record and export capacity of historical events for each of fire, fault and operation

Technical Speci?cation

> Number of Zones - 4
> Zone Capacity - 32 detectors per zone
> Main Power - AC90-240V/50Hz, 60Hz
> Backup Power - 2 lead-acid batteries (12V/2.5Ah each)
> Output Current - 2A
> Sounder Output Fault: 50dB
> Alarm: 60dB
> Fire Bell Output - DC 28V/500mA
> Dimensions - 310.0 mm×73.0 mm×227.0 mm (12.20" × 2.87" × 8.94")
> Weight - 3.5 kg , 5 kg (with 2 batteries)
> Operating Temperature : –10°C to +50°C (+14°F to +122°F)
> Operating Humidity ? 95% RH (no condensation)
> Protection - Grade IP30
> Installation - Wall mount
> Compliance Standard :  EN54-2,EN54-4

Ficha Tecnica ?https://www.dahuasecurity.com/es/products/All-Products/Fire-Alarm/Conventional-Fire-Alarm-System/Control-Panel/HY-C102-4
