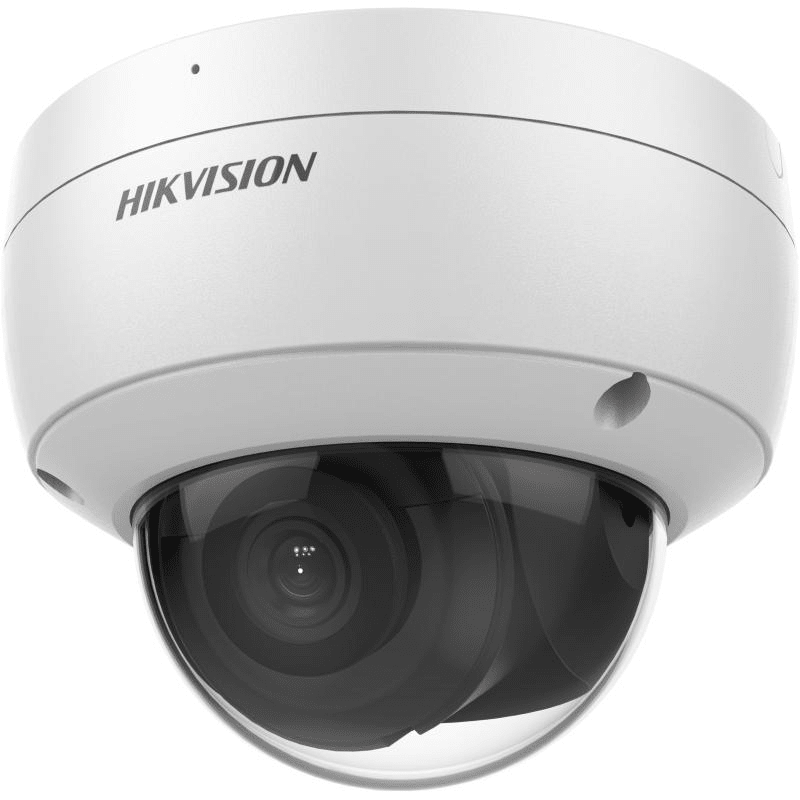

Domo IP 6MP IR30M Acusense Audio PoE DS-2CD2163G2-IU 2.8mm Hikvision
- Cámara
- Sensor De Imagen1/2.4" Progressive Scan CMOS
- Max. Resolución3200 × 1800
- Iluminación MínimaColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Tiempo De Obturación1/3 s to 1/100,000 s
- Día Y NocheIR cut filter
- Ajuste De ÁnguloPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
- Lente
- LenteFixed focal length, 2.8 and 4 mm optional
- Focal Length & FOV
2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°;
4 mm, horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
- Montura Del LenteM12
- Iris TypeFixed
- AperturaF1.6
- DORI
- DORI
2.8 mm: D: 76 m, O: 30 m, R: 15 m, I: 7 m;
4 mm: D: 115 m, O: 45 m, R: 23 m, I: 11 m
- Iluminador
- Tipo De Luz SuplementariaIR
- Rango De Luz SuplementariaUp to 30 m
- Luz De Suplemento InteligenteYes
- IR Wavelength850 nm
- Vídeo
- Main Stream
50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 x 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 x 720, 640 × 480, 640 × 360)
- Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Compresión De Video
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
- Vídeo Bitrate32 Kbps to 16 Mbps
- Tipo H.264Baseline Profile/Main Profile/High Profile
- Tipo H.265Main Profile
- Bit Rate ControlCBR/VBR
- Codificación De Video Escalable (SVC)H.264 and H.265 encoding
- Región De Interés (ROI)1 fixed region for main stream and sub-stream
- Audio
- Compresión De AudioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Velocidad De Bits De Audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
- Frecuencia De Muestreo De Audio8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Filtro De Ruido AmbientalYes
- Red
- ProtocolosTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Vista En Vivo SimultáneaUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
- Usuario/OperadorUp to 32 users. 3 user levels: administrator, operator and user
- SeguridadPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Almacenamiento En RedNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- ClienteiVMS-4200, Hik-Connect, Hik-Central
- Navegador Web
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Imagen
- Interruptor De Parámetros De ImagenYes
- Configuración De ImagenRotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
- Interruptor Día/NocheDay, Night, Auto, Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR? 52 dB
- Mejora De La ImagenBLC, HLC, 3D DNR
- Máscara De Privacidad4 programmable polygon privacy masks
- Interfaz
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Micrófono IncorporadoYes
- Reset KeyYes
- Evento
- Evento BásicoMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email
- Deep Learning Function
- Perimeter Protection
Line crossing, intrusion
Support alarm triggering by specified target types (human and vehicle)
- General
- Alimentación
12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material
Aluminum alloy body
Bubble: plastic
- DimensiónØ121.4 mm × 92.2 mm (Ø4.8" × 3.7")
- Dimensión Del Paquete150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
- Approx. 440 g (1.0 lb.)
- Con Peso Del PaqueteApprox. 670 g (1.47 lb.)
- Condiciones De Almacenaje-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Condiciones De Inicio Y Funcionamiento-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Idioma
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Función GeneralHeartbeat, mirror, password reset via email, pixel counter, anti-flicker
- Certificaciones
- EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
- SeguridadUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
- AmbienteCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
- ProtecciónIP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
