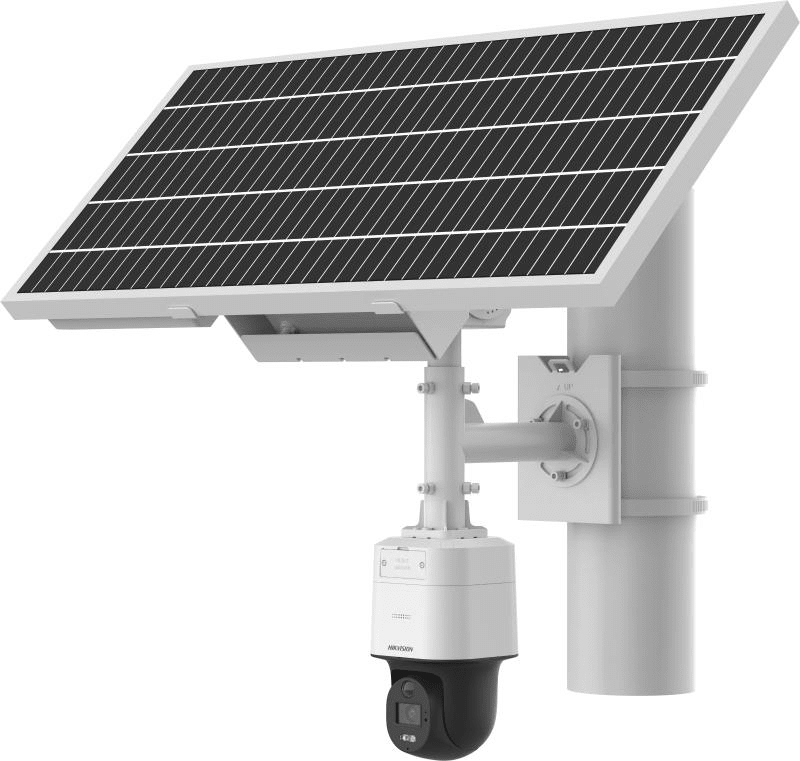

DS-2XS3Q47G1-LDH-4G (4mm) HIK 4MP 4mm PT ColorVu Solar Bateria 4G IP671

DS-2XS3Q47G1-LDH-4G (4mm) HIK 4MP 4mm PT ColorVu Solar Bateria 4G IP67

HIKVISION
$ 900.199
IVA incluido
  • Cámara
  • Sensor De Imagen1/3" Progressive Scan CMOS
  • Max. Resolución2688 × 1520
  • Iluminación MínimaColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
  • Tiempo De Obturación1/3 s to 1/100,000 s
  • Día Y Noche24/7 color imaging
  • Ajuste De ÁnguloSolar panel: pan: 0° to 358°, tilt: -40° to 0°; camera: pan: 0° to 340°, tilt: -5° to 105°
  • Lente
  • LenteFixed focal lens, 4 and 6 mm optional
  • Iris TypeFixed
  • AperturaF1.0
  • Depth Of Field

    4 mm: 2.7 m to ?

    6 mm: 5.9 m to ?

  • Focal Length & FOV

    4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°

    6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°

  • Montura Del LenteM12
  • DORI
  • DORI

    4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m

    6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m

  • Iluminador
  • Tipo De Luz SuplementariaWhite Light
  • Rango De Luz SuplementariaPerformance mode: up to 30 m, proactive mode: up to 10 m
  • Luz De Suplemento InteligenteYes
  • Vídeo
  • Main Stream

    50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

    60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  • Sub-Stream

    50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)

    60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)

  • Compresión De Video

    Main stream: H.265/ H.264

    Sub-stream: H.265/H.264/MJPEG

    H.264+ and H.265+: main stream supports under performance mode

  • Vídeo Bitrate32 Kbps to 8 Mbps
  • Tipo H.264Baseline Profile,Main Profile,High Profile
  • Tipo H.265Main Profile
  • Bit Rate ControlCBR,VBR
  • Región De Interés (ROI)1 fixed region for main stream
  • Codificación De Video Escalable (SVC)H.264 and H.265 encoding
  • Audio
  • Frecuencia De Muestreo De Audio8 kHz/16 kHz
  • Filtro De Ruido AmbientalYes
  • Compresión De AudioG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
  • Velocidad De Bits De Audio64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
  • Red
  • SeguridadPassword protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface
  • Vista En Vivo SimultáneaUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • ProtocolosTCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
  • Usuario/Operador

    Up to 32 users

    3 user levels: administrator, operator, and user

  • Almacenamiento En RedAuto Network Replenishment (ANR)
  • ClienteiVMS-4200,Hik-Connect,Hik-Central
  • Navegador Web

    Plug-in required live view: IE 10, IE11,

    Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,

    Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

  • Mobile Communication
  • SIM Card TypeMicro SIM
  • Uplink And Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
  • Frecuencia

    EU:

    LTE-TDD: B38/B40/B41

    LTE-FDD: B1/B3/B5/B7/B8/B20/B28

    WCDMA: B1/B5/B8

    GSM: B3/B5/B8

    LA:

    LTE-TDD: B38/B40

    LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66

    WCDMA:B1/B2/B3/B4/B5/B8

    GSM: B2/B3/B5/B8

    US:

    LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71

    WCDMA: B2/B4/B5

  • EstándarLTE-TDD,LTE-FDD,WCDMA,GSM
  • Imagen
  • SNR? 52 dB
  • Wide Dynamic Range (WDR)120 dB
  • Máscara De Privacidad4 programmable polygon privacy masks
  • Interruptor Día/NocheDay,Night,Auto,Schedule
  • Mejora De La ImagenBLC,HLC,3D DNR
  • Configuración De ImagenRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Interfaz
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board Storage

    Built-in eMMC storage, up to 64 GB,

    Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB,For eMMC storage, 50 GB is available for recording.

  • Micrófono IncorporadoYes
  • Altavoz IncorporadoYes
  • Reset KeyYes
  • Evento
  • Evento BásicoMotion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
  • LinkageUpload to NAS/memory card,notify surveillance center,trigger recording,trigger capture,audible warning
  • General
  • Alimentación

    Power Consumption and Current:

    Typical power scenarios: 1.85 W (4G working)

    Standby scenarios: 40 mW

    Max. power consumption: 6 W

    Power Supply:

    12 VDC ± 25%

    *For debugging only

    40 W (deviation: ± 2 W) Solar panels

    Power Interface:

    Power supply interface: Ø5.5 mm coaxial power plug

    Extened solar panel: four-core aviation connector

  • MaterialCamera: Plastic; Solar panel: Metal
  • Condiciones De Almacenaje-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Idioma33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • Función GeneralHeartbeat,mirror,flash log
  • Condiciones De Inicio Y Funcionamiento-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
  • Dimensión686.6 mm × 442.6 mm × 760 mm (27.03" × 17.42" × 29.9")
  • Dimensión Del Paquete902 mm × 342 mm × 440 mm (35.5" × 13.5" × 17.3")

  • Approx. 11.70 kg (25.8 lb.)

  • Con Peso Del Paquete

    Approx. 15.01 kg (33.1 lb.)

  • Batería
  • Tipo De BateríaTernary Lithium
  • Capacidad8.4 Ah × 2 packs
  • Max. Voltaje De Carga12.6 V
  • Temperatura De Funcionamiento

    Charging: -20 °C to 45 °C (-4 °F to 113 °F)

    Discharging: -20 °C to 60 °C (-4 °F to 140 °F)

  • Voltaje De La Batería9 V to 12.6 V
  • Vida De BateríaMore than 500 cycles
  • Ciclo De Vida

    Performance mode: 3.6 days,

    Proactive mode: 6 days,

    Standby mode: 30 days

  • Battery WeightApprox. 1400 g (3.1 lb.)
  • Certificaciones
  • EMC

    CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

    RCM: AS/NZS CISPR 32: 2015,

    IC: ICES-003: Issue 7,

    *IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.

  • RF

    IC ID (RSS-247(BT or 2.4G)),

    CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)

    *IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.

  • Seguridad

    CB: IEC 62368-1: 2014+A11,

    CE-LVD: EN 62368-1: 2014/A11: 2017,

    LOA: IEC/EN 60950-1,

    *CE and LOA certifications are only for the device sold in the European region.

  • Ambiente

    CE-RoHS: 2011/65/EU,

    WEEE: 2012/19/EU,

    Reach: Regulation (EC) No 1907/2006,

    *CE certification is only for the device sold in the European region.

  • Protección

    IP65: IEC60529-2013
