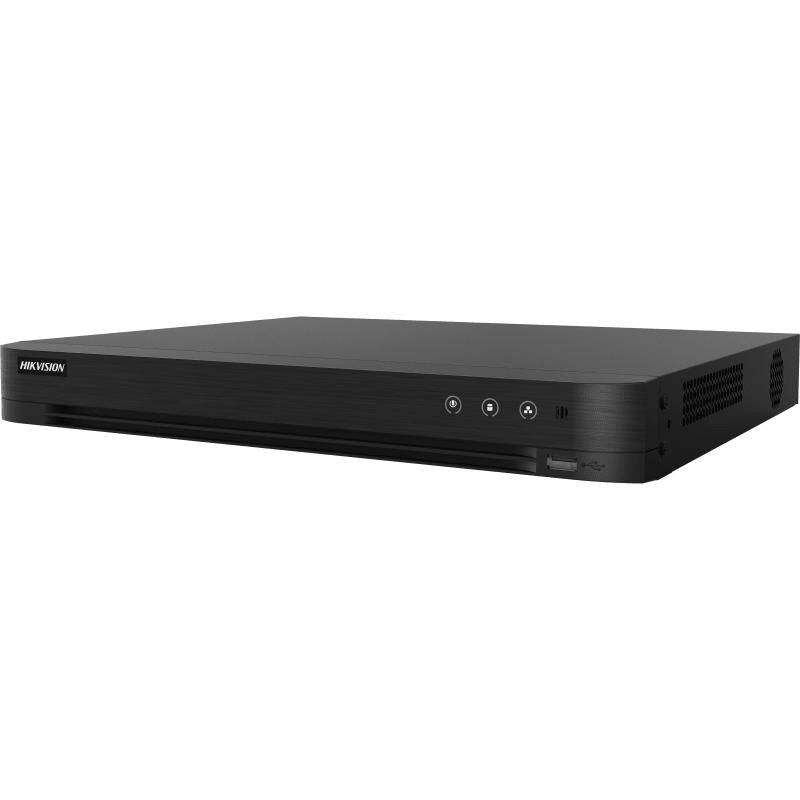

DVR 16Ch 5MP AcuSense Alarma 16E-4S iDS-7216HUHI-M2-/XT Hikvision
- Detección De Movimiento 2.0
- Human/Vehicle Analysis
Deep learning-based motion detection 2.0 is enabled by default for all analog channels,
it can classify human and vehicle, and extremely reduce false alarms caused by objects
like leaves and lights;
Quick search by object or event type is supported;
- Protección Perimetral
- Human/Vehicle AnalysisUp to 4-ch
- Detección Facial
- Facial Detection And CaptureFace picture detection, face picture search
- Video And Audio
- Entrada De Vídeo IP
8-ch (up to 24-ch)
Enhanced IP mode on: 16-ch (up to 32-ch), each up to 4 Mbps
Up to 8 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Entrada De Video Analógico
16-ch
BNC interface (1.0 Vp-p, 75 ?), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz
HDMI/VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
HDMI/VGA simultaneous output
- CVBS InputPAL/NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 ?),
resolution: PAL: 704 × 576, NTSC: 704 × 480
- Reproducción Síncrona16-ch
- HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
- AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
- Salida De Audio1-ch, RCA (Linear, 1 K?)
- Entrada De Audio
1-ch (up to 16-ch is optional), RCA (2.0 Vpp,1 K?)
16-ch via coaxial cable
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?) (using the audio input)
- Recording
- Compresión De VídeoH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Resolución De Codificación8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Vídeo Bitrate32 Kbps to 10 Mbps
- Doble FlujoSupport
- Stream TypeVideo, Video & Audio
- Compresión De AudioG.711u
- Audio Bitrate64 Kbps
- Red
- Total Bandwidth128Mbps
- Protocolo De RedTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Conexión Remota128
- Interfaz De Red
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
- Wi-FiWi-Fi Connectable to Wi-Fi network by Wi-Fi dongle through USB interface
- Auxiliary Interface
- SATA2 SATA interfaces
- CapacidadUp to 10 TB capacity for each disk
- Interfaz De SerieRS-485 (half-duplex)
- Interfaz USB
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 3.0
- Alarma E/SN/A (optional to support)
- General
- Fuente De Alimentación12 VDC, 5 A
- Consumo? 19 W
- Temperatura De Trabajo-10 °C to +55 °C (+14 °F to +131 °F)
- Condiciones De Humedad10% to 90%
- Dimensión (W × D × H)380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
- ? 2.1 kg (4.6 lb)
