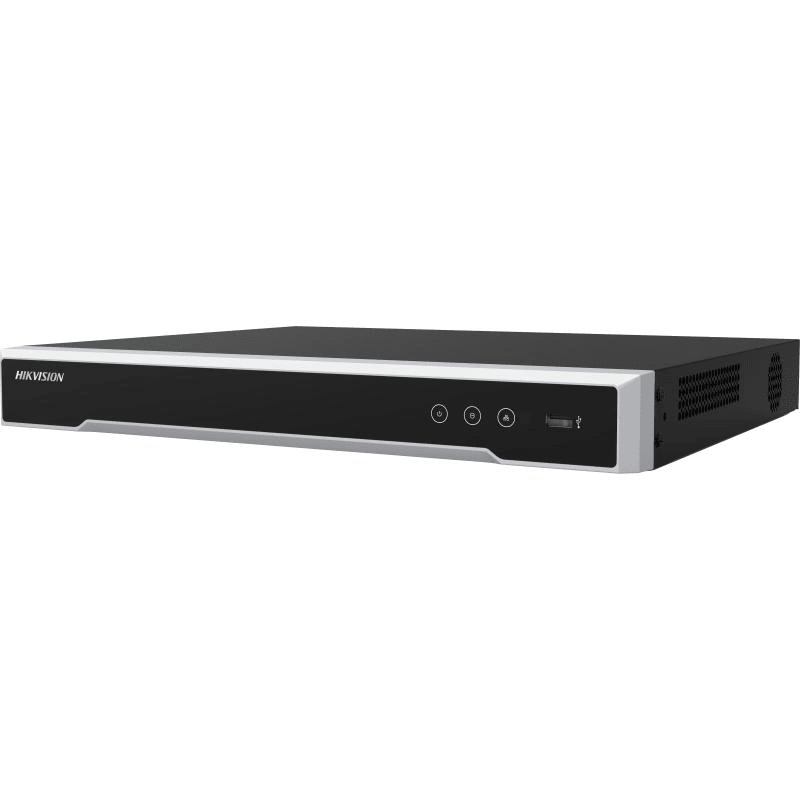

Hikvision DS-7616NI-Q2(D) NVR 16 Canales 4K 2 SATA H265+ SIN POE

Hikvision DS-7616NI-Q2(D)  NVR 16 Canales 4K 2 SATA H265+  SIN POE

DS-7616NI-Q2

16-ch 1U 4K NVR

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

• Detección De Movimiento 2.0
• Human/Vehicle Analysis4-ch

• Video And Audio
• Entrada De Vídeo IP16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• HDMI Output1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output ModeHDMI/VGA simultaneous output
• Salida De Audio1-ch, RCA (Linear, 1 K?)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k ?)

• Descodificación
• Formato De DecodificaciónH.265+,H.265,H.264+,H.264
• Resolución De Grabación8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Decodificación

  1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

  *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

• Reproducción Síncrona16-ch

• Red
• Conexión Remota32
• Protocolo De RedTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Interfaz De Red1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA2 SATA interfaces
• CapacidadUp to 8 TB capacity for each disk
• Interfaz USB2 × USB 2.0

• General
• Fuente De Alimentación12 VDC, 3.33 A
• Consumo? 15 W (without HDD)
• Temperatura De Trabajo-10 °C to 55 °C (14 °F to 131 °F)
• Condiciones De Humedad10 to 90 %
• Chassis1U chassis
• Dimensión (W × D × H)385 × 315 × 52 mm (15.2"× 12.4" × 2.0")
• ? 1.8 kg (without HDD, 4.0 lb.)
