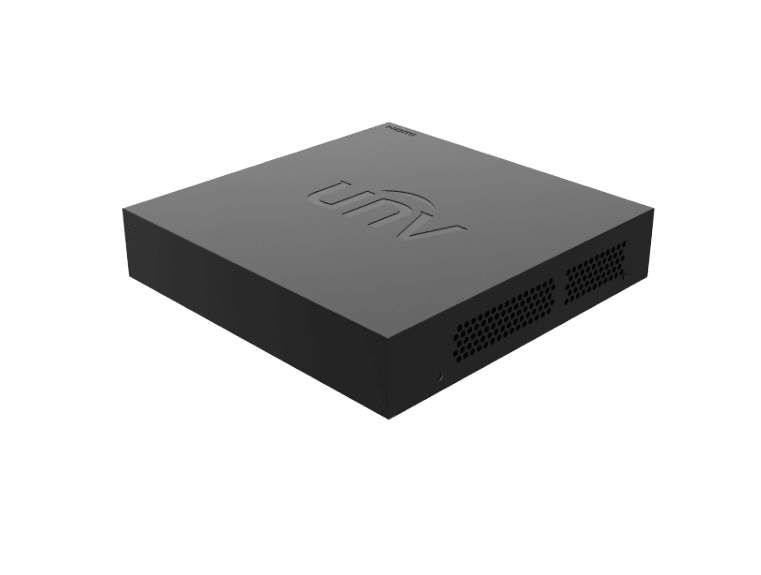

MES UNV XVR XVR301-04F Grabador 4 Canales H.265 2MP IA Ultra Detección Movimiento

Support H.265/H.264 video formats
Support audio over coaxial cable (only for TVI cameras)
Control the dual-light of UNV analog cameras under TVI
Support analog camera upgrade over coaxial cable
Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
4/8/16-channel BNC input
Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
HDMI and VGA simultaneous output
Long transmission distance over coaxial cable
Support mainstream cameras of ONVIF and RTSP protocols

Model XVR301-04F
IP Video
Input
2-ch
Analog Video
Input
4-ch, BNC
Max IP Video
Input
6-ch

Support AHD input:
1080P@30fps
720P@30fps
Support TVI input:
1080P@30fps
720P@30fps
Support CVI input:
1080P@30fps
720P@30fps
Support CVBS input

HDMI Output
HDMI: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60
Hz
VGA Output VGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Encoding/Decoding
Recording
Resolution
1080P Lite/720P/D1

Recording
Frame Rate
Main stream: 1080P Lite@25fps
Sub stream: D1@25fps
Main stream: 720P@30fps Sub
stream: D1@30fps

Audio
Sample Rate
8 kHz, 16 bit per channel
Audio Bit
Rate
64 Kbps per channel

Decoding
Capability
Analog:4 x 1080P Lite@25, 4 x
720P@30
IP: 1 x 6MP@20, 2 x 1080P@30

Analog Snapshot
FTP/Schedul
e/Event
Snapshot
FTP/Event snapshot:4-ch snapshot,
up to 704*576 resolution,
Schedule snapshot:not supported

Smart
Analog
Smart by
XVR
Ultra Motion Detection (UMD)
VCA Search Behavior Search
Smart
Functions by
XVR
4-ch (UMD)

Network
Incoming
Bandwidth
24Mbps (Up to 32Mbps after all
analog channel conversion)
Outgoing
Bandwidth
48Mbp
Remote
Users
128
Protocols TCP/IP, P2P, UPnP, NTP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP
Browser(Plu
gin)
IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Alarm
General
Alarm
Motion
Alert Alarm
IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full,
Recording/Snapshot Abnormal
GUI Language
GUI
Language
20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese,
French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian
Hard Disk
SATA 1 SATA interface
Capacity Up to 6 TB for each HDD

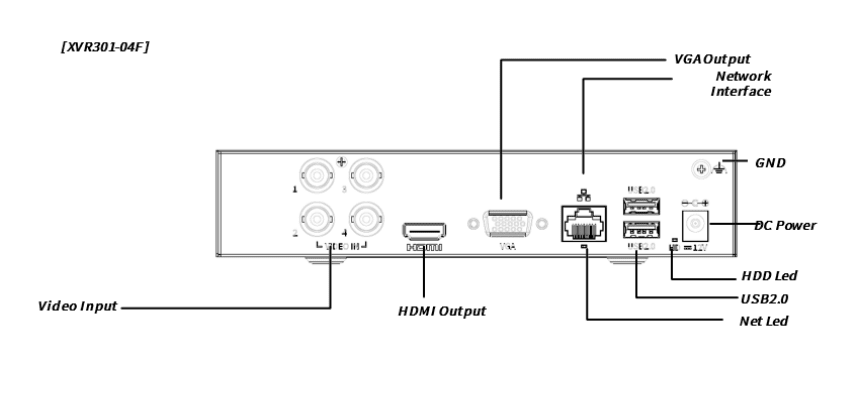

External Interface
Network
Interface
1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USB Rear panel: 2 × USB2.0
Power
Supply
DC 12 V/1.5 A
Working Environment
Working
Temperatur
e
-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working
Humidity
≤ 90% RH (non-condensing)
Power
Consumptio
n (without
HDD)
≤ 10W
