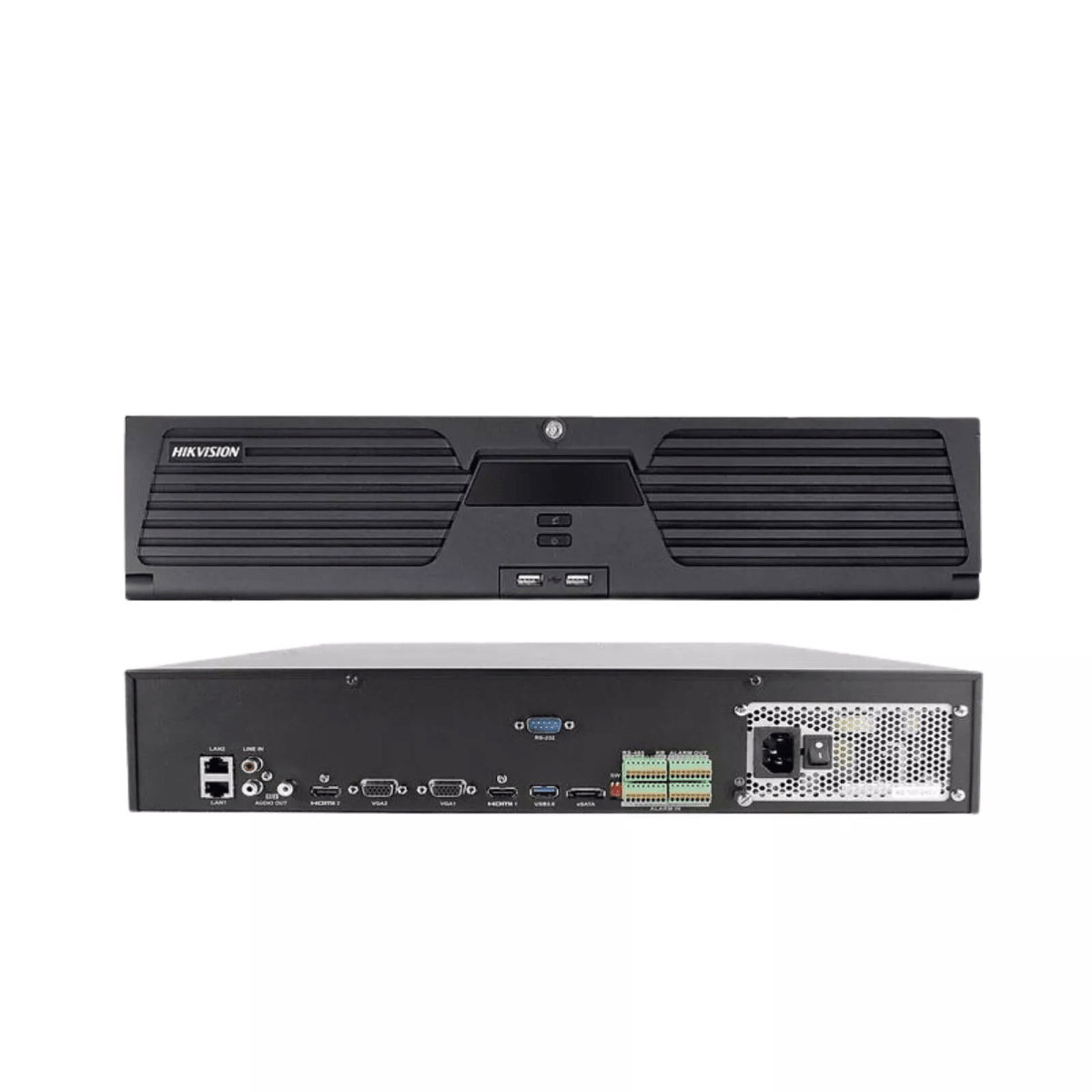

NVR 64 Canales 4K DS-9664NI-M8 Hikvision1

NVR 64 Canales 4K DS-9664NI-M8 Hikvision

HIKVISION
$ 1.422.750
IVA incluido
  • Video And Audio
  • Entrada De Vídeo IP64-ch
  • Incoming Bandwidth400 Mbps
  • Outgoing Bandwidth400 Mbps
  • HDMI 1 Output8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz
  • HDMI 2 Output

    4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz

    *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.

  • VGA 1 Output1920 × 1080/60 Hz
  • VGA 2 Output1920 × 1080/60 Hz
  • Video Output Mode

    HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

    HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

  • CVBS Output1-ch, BNC (1.0 Vp-p, 75 ?), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • Salida De Audio2-ch, RCA (Linear, 1 K?)
  • Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 K?, using the audio input)
  • Descodificación
  • Formato De DecodificaciónH.265+/H.265/H.264+/H.264
  • Resolución De Grabación32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
  • Reproducción Síncrona16-ch
  • Decodificación2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps)
  • Compresión De AudioG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
  • Red
  • Protocolo De RedTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF(Version 2.2), OTAP
  • Interfaz De Red2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
  • Camera Access ProtocolONVIF(Version 2.5), RTSP
  • RAID
  • RAID TypeRAID0, RAID1, RAID5, RAID6, RAID10
  • Auxiliary Interface
  • Interfaz De Serie1 RS-485 (full-duplex), 1 RS-232
  • SATA8 SATA interfaces supporting hot-plug
  • ESATA1 eSATA interface
  • CapacidadUp to 16 TB capacity for each disk
  • Alarma E/S16/9
  • Interfaz USBFront panel: 2 × USB 2.0; Rear panel: 2 × USB 3.0
  • Ctrl 12V

    Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

    *: The Ctrl 12V power is controlled by alarm output 9.

  • DC 12V12 VDC, 1 A power output
  • General
  • Fuente De Alimentación100 to 240 VAC, 50 to 60 Hz
  • Consumo? 50 W (without HDD)
  • Temperatura De Trabajo-10 °C to 55 °C (14 °F to 131 °F)
  • Condiciones De Humedad10% to 90%
  • Chassis2U chassis
  • Dimensión (W × D × H)445 × 465 × 93 mm ( 17.5"× 18.3" × 3.7")
  • ? 10 kg (without HDD, 22 lb.)
  • Certificación
  • Obtained CertificationCE, FCC
  • CEEN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
